Staged over 2024 and 2025. Designed for further expansion.
A model for the full system was produced, and a silo lay out determined to suit future development. The ultimate staged on-farm storage system. The most economic dollars per tonne of storage and handling in the Optimum range.
A total of 14,000 tonnes of storage.
Automated control.
In-loading with drive over hopper.
Out-loading over hopper or from surge bin.
Stage one:

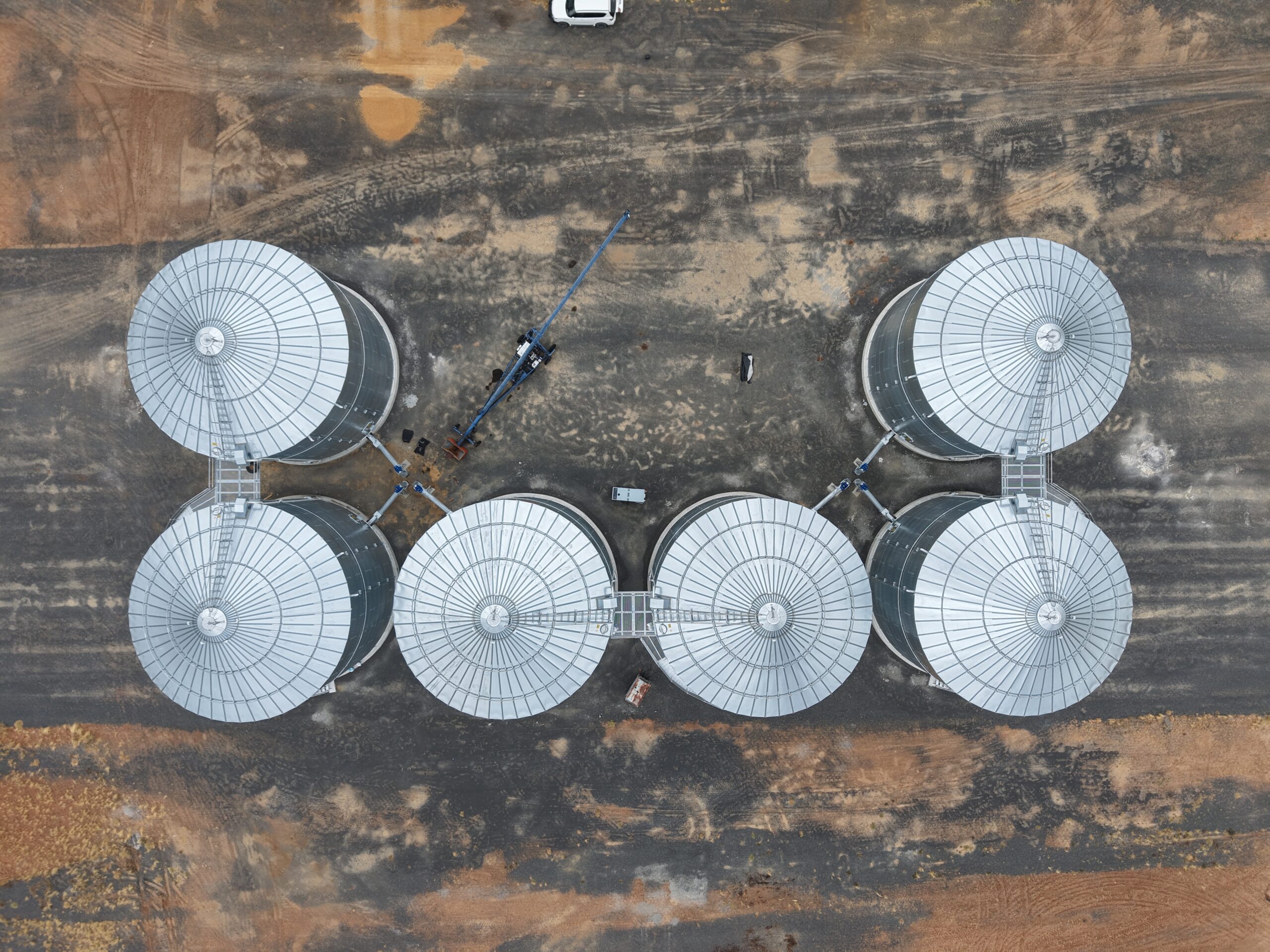

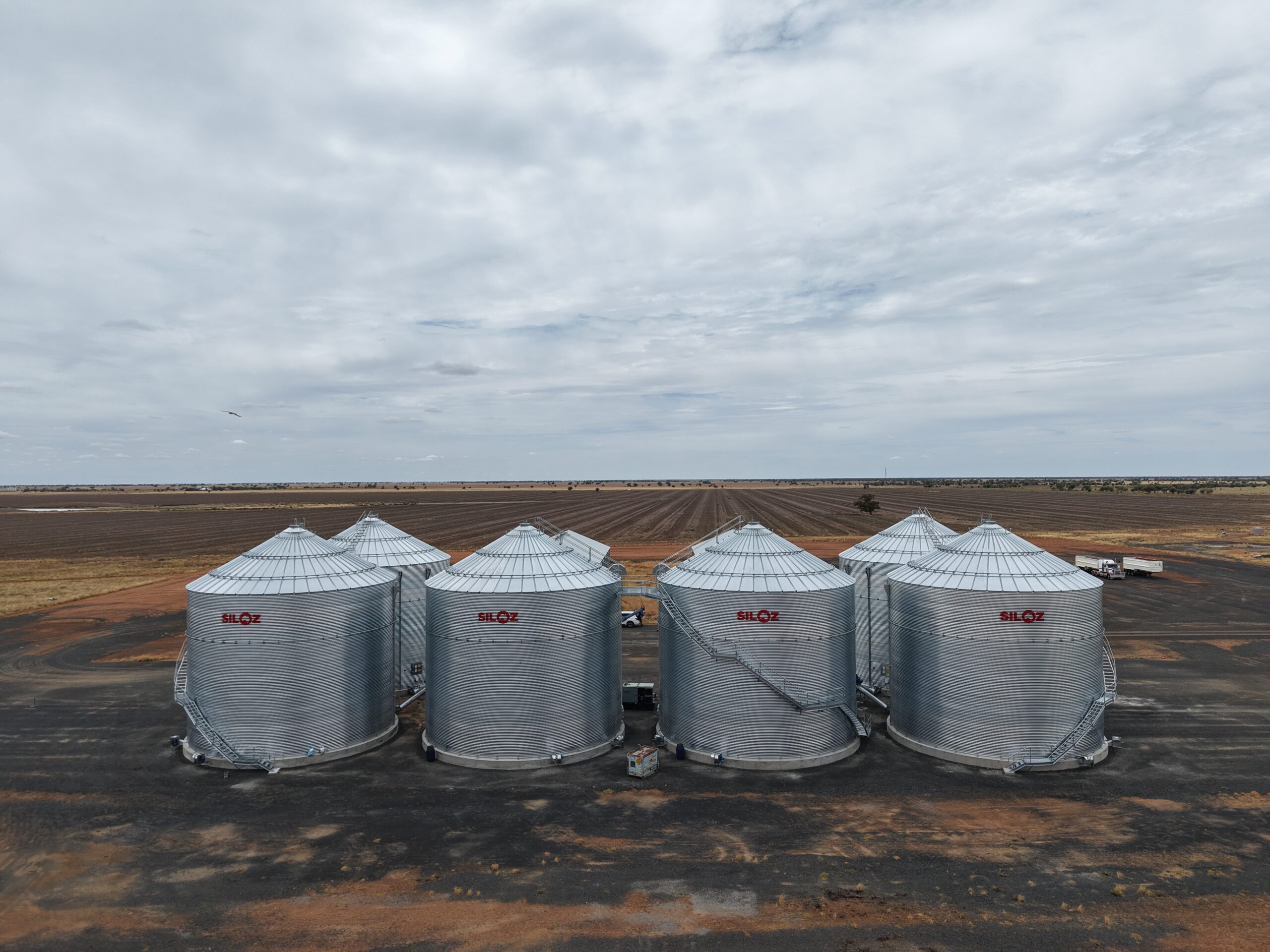

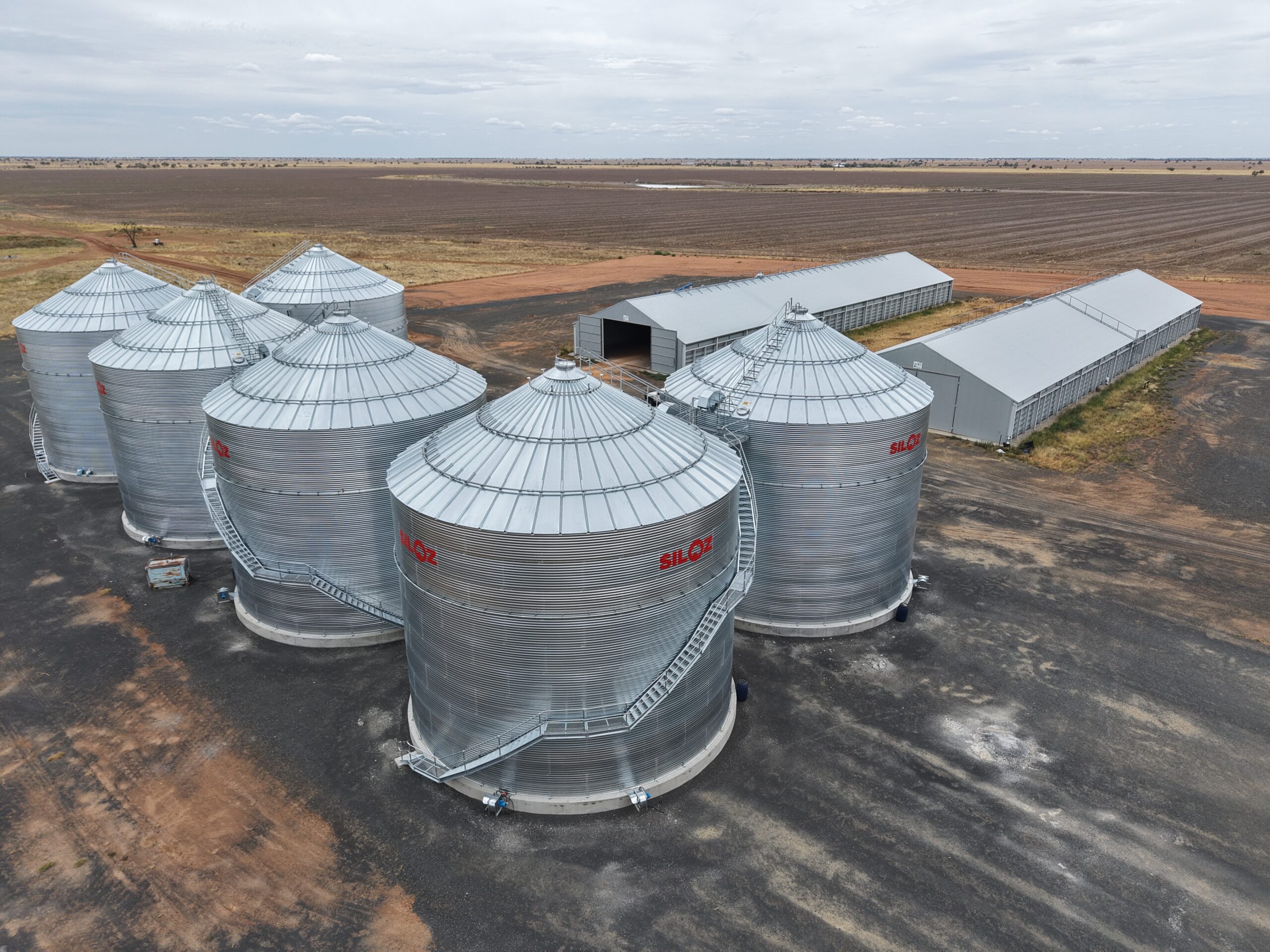

- 6 x 1720 tonne SilOz Grain silos
- Optimum heavy duty unloading and sweep augers
- Aeration
- Sealed
- Filled with 100 foot swing away auger
Stage two:

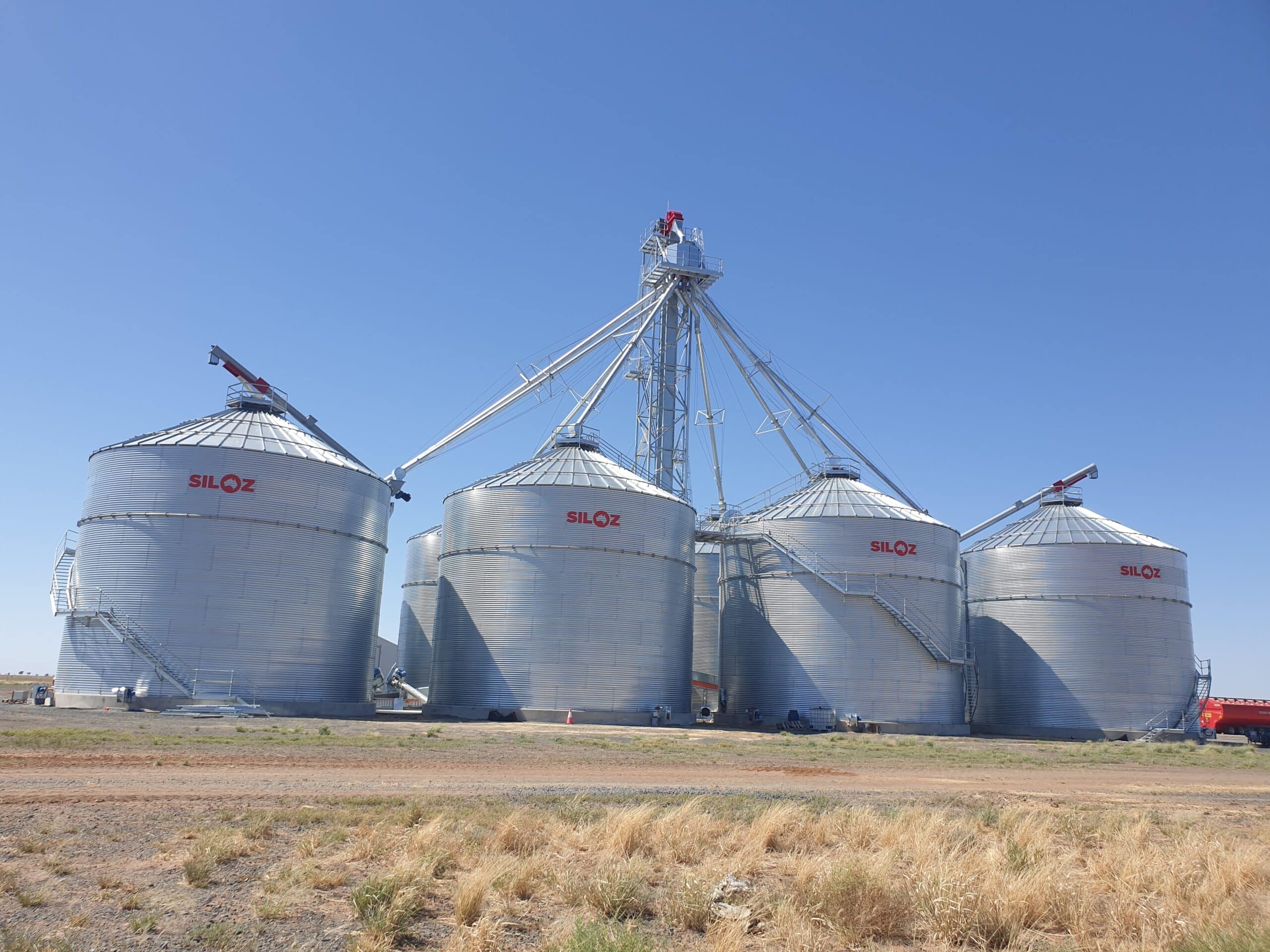

- 2 x 1720 tonne SilOz Grain Silos
- 300t/hr in-loading
- 200t/hr out-loading
- 30t drive over hopper
- 2 x 400mm pit augers
- Intake drag conveyors 300t/hr
- Bucket elevator 300t/hr
- 2 x reclaim drag conveyors 300t/hr
- 2 x diverters for future surge bin
Stage three (future):
- 250 tonne surge bin
- Spout to surge bin
- Auger to surge bin
- Truck auger
- Allows in-loading and out-loading at the same time
