Staged over 2016, 2023/ 24 and 2026. Designed for further expansion.

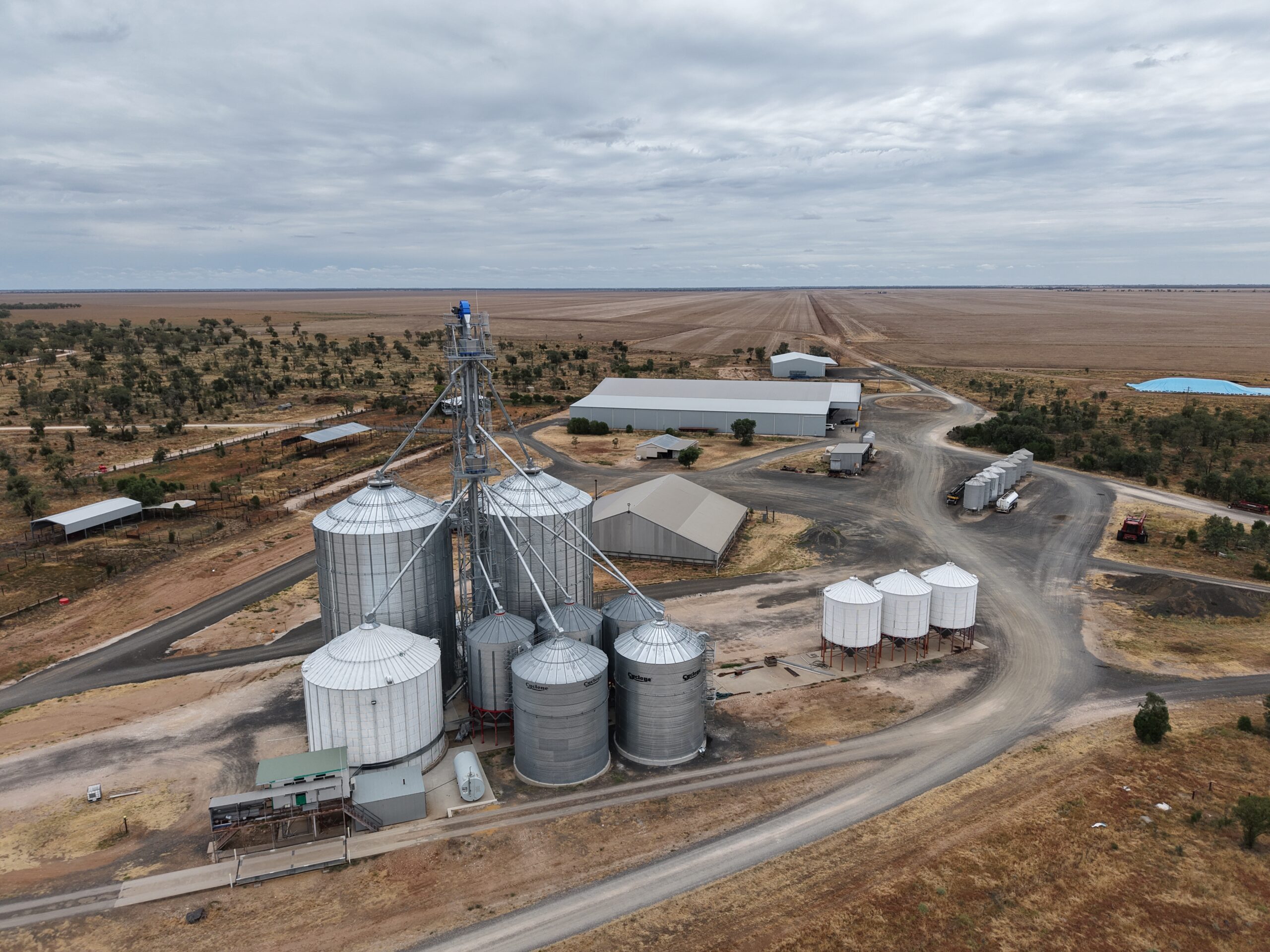

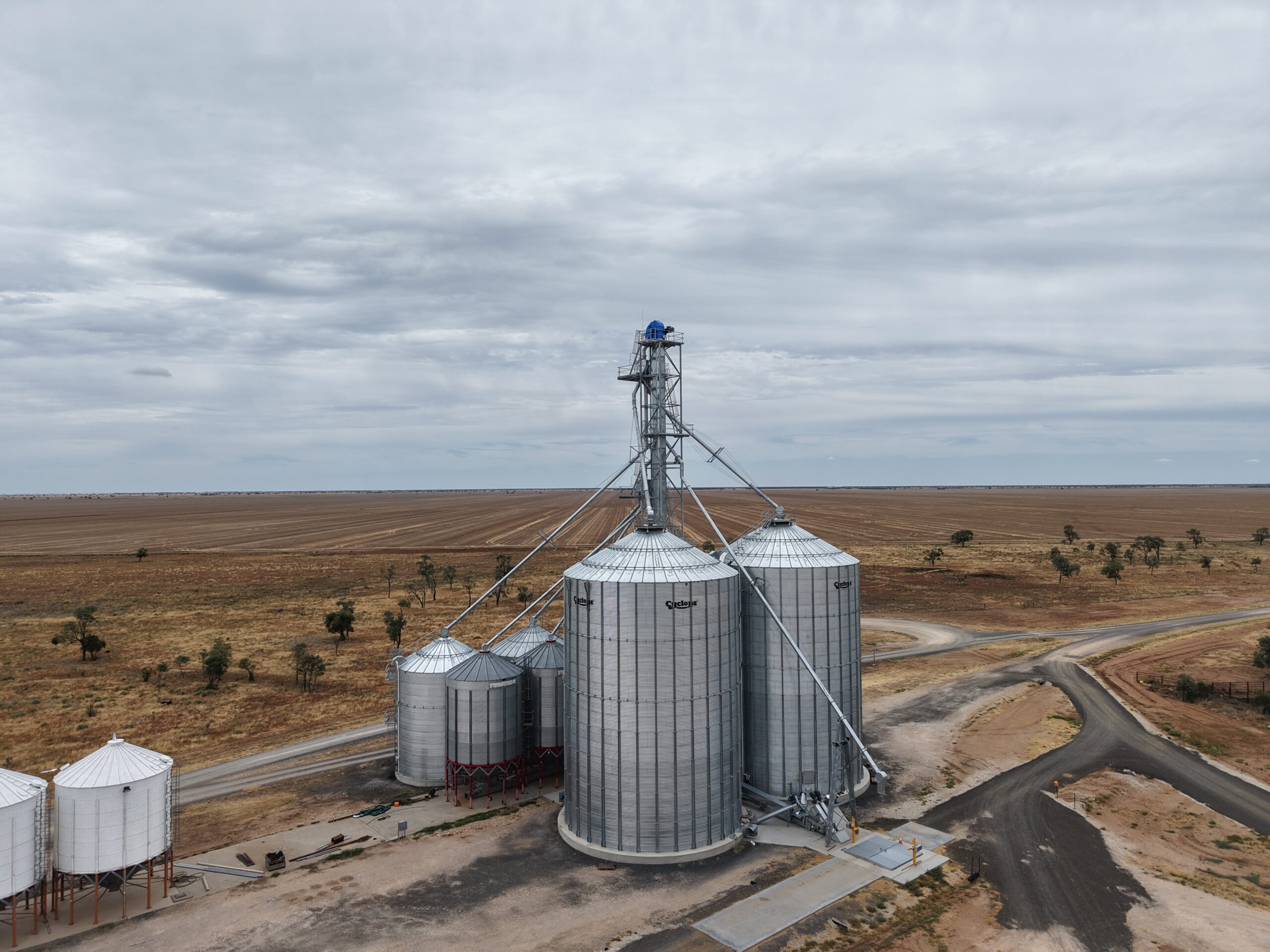

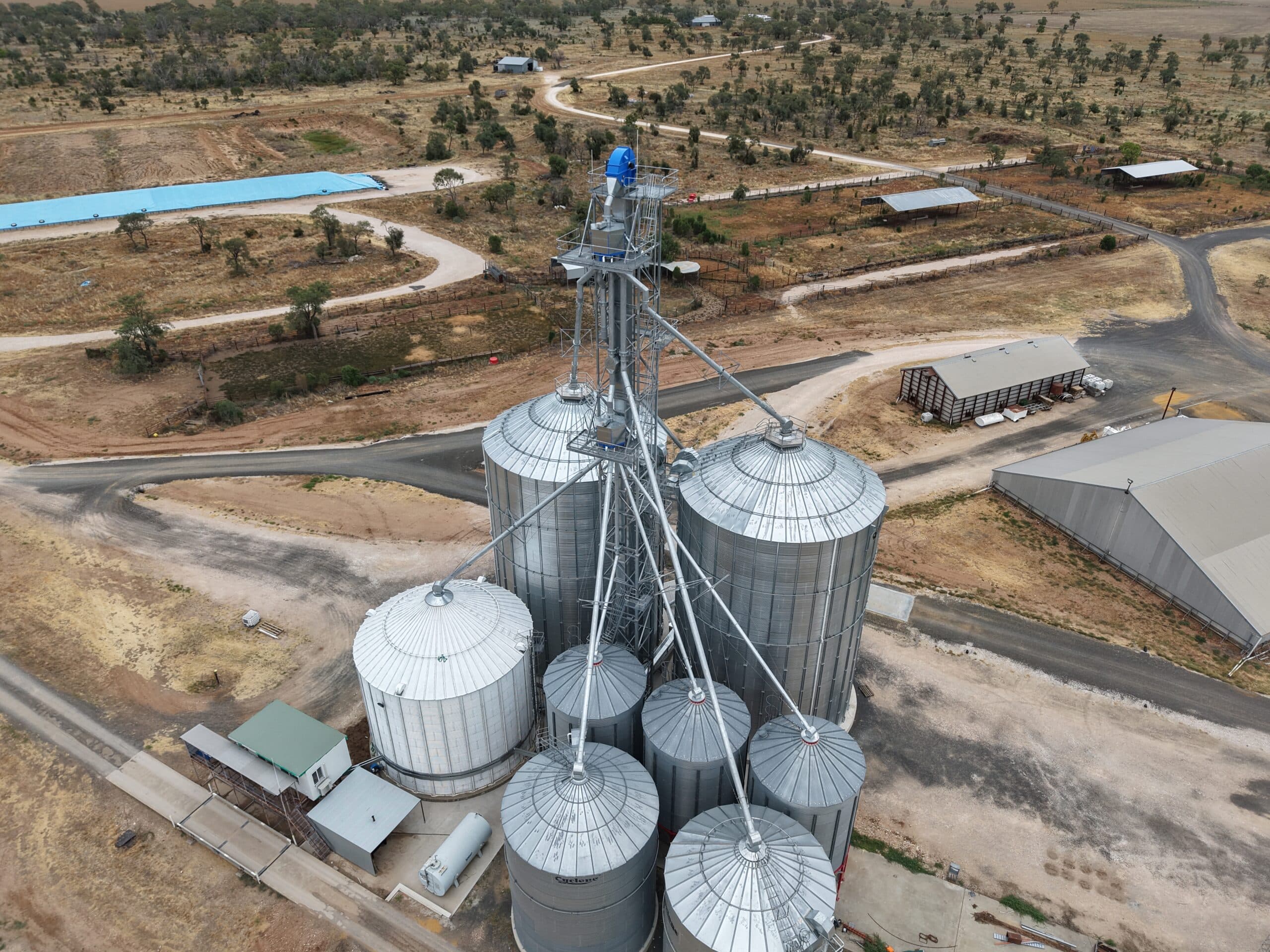

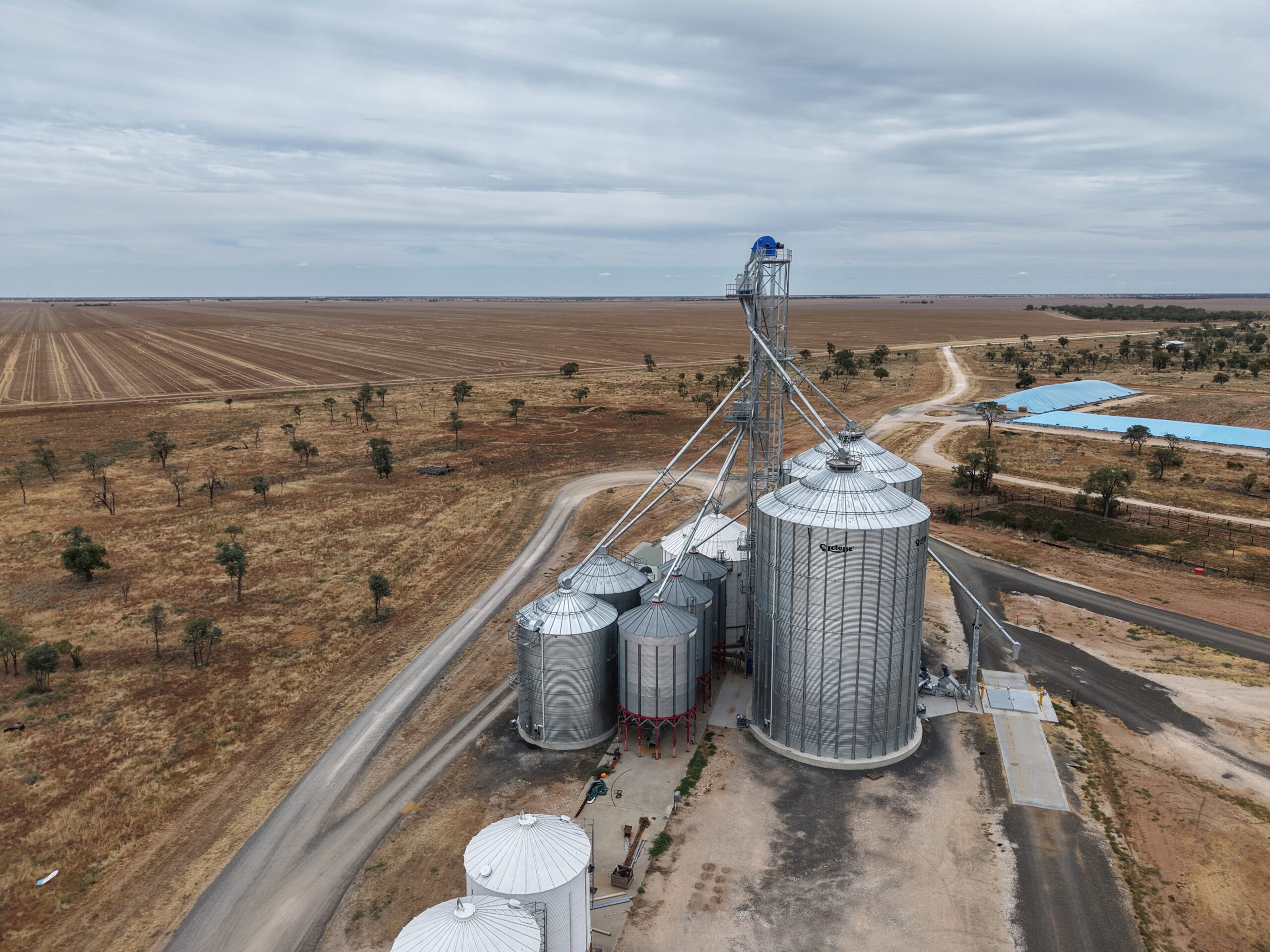

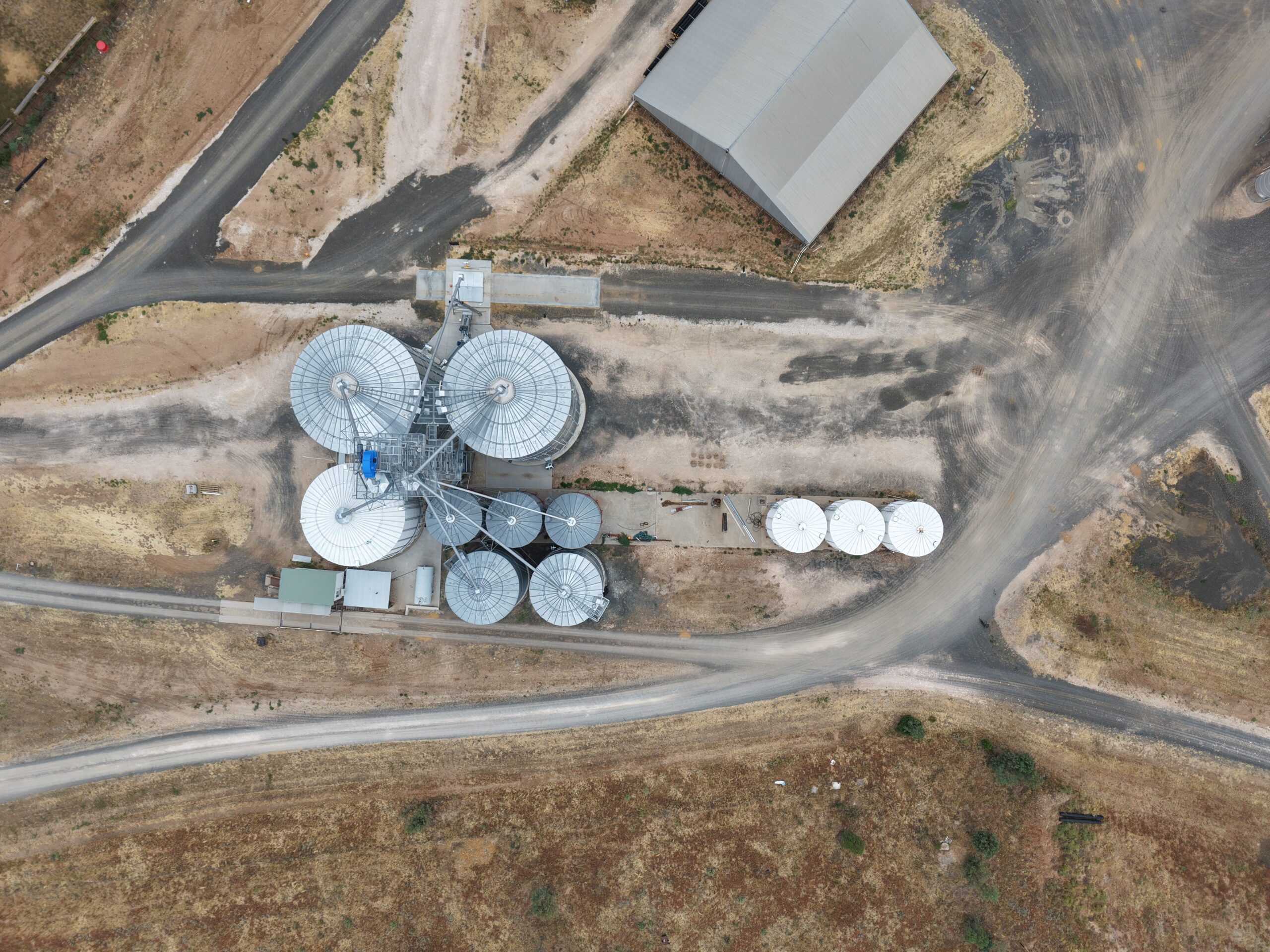

A model for the full system was produced, and a silo lay out determined to suit future development. The ultimate staged on-farm storage system. The most economic dollars per tonne of storage and handling in the Optimum range.
A total of 13,000 tonnes of storage.
Automated control.
In-loading with drive over hopper.
Out-loading over hopper or from surge bin.
Stage one:
- 1 x 600t Cyclone Silo
- Optimum heavy duty unloading and sweep augers
- Aeration
- Sealed
- Filled with swing away auger
- Retro fitted 1000 t MFS silo with Optimum heavy duty unloading and sweep augers
- Retro fitted 1000t MFS silo with full aeration floor
- Optimum drag conveyor under three 250t Twister silos
Stage two:
- 2 x 3000 tonne Cyclone Silos
- 1 x 600 tonne Cyclone Silo
- 300t/hr in-loading
- 200t/hr out-loading
- 30t drive over hopper
- 2 x 400mm pit augers
- Intake drag conveyors 300t/hr
- 42m high bucket elevator and tower 300t/hr
- Double turn head to feed 8 silos and truck loading
- 1 x reclaim drag conveyors 200t/hr
- 1 x reclaim auger 200t/hr
Stage three (future):
- 1 x 3000t SilOz Grain silo, sealed, Optimum industrial unloading auger
- Gantry and overhead drag conveyor
- Transfer auger
